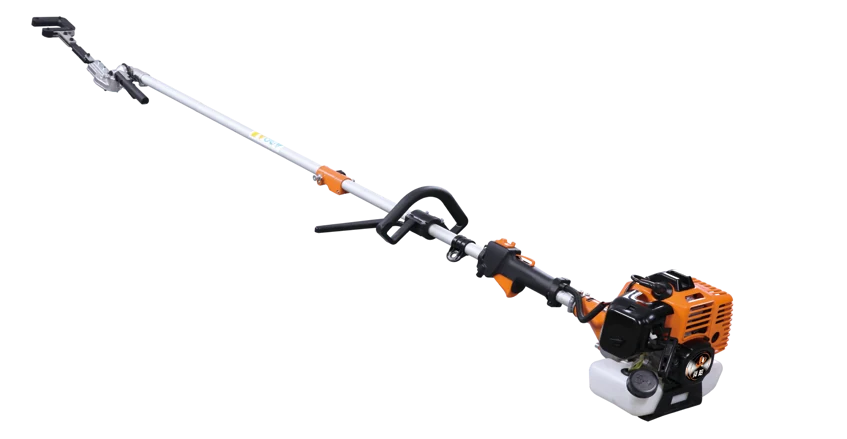

4GS-50/4GS-50.1 Shaker harvester

PRODUCT INFORMATION

Specifications

Values are transcribed from the 2023 catalogue.

Engine

1E36F-2A

Engine type

Air-cooled, 2-stroke, vertical, piston-valve gasoline engine

Displacement (mL)

32.6

Maximum output (kW/min⁻¹)

0.9/7500

Fuel

Gasoline/oil mixture, ratio 30:1

Fuel tank capacity (L)

0.9

Starting method

Recoil start

Reduction ratio

56:5/43:9

Extension rod (mm)

750/1000

Front handle vibration (m/s²)

Idling 3.5; racing 9.7; equivalent 7.3

Rear handle vibration (m/s²)

Idling 1.9; racing 7.4; equivalent 5.4

Vibration test standard and uncertainty

ISO 22867; 1.5 m/s²

Sound pressure LwAav (dB(A))

Idling 76.6; racing 99.3; equivalent 96.3

Sound power LWAav (dB(A))

Idling 86.0; racing 109.4; equivalent 106.4

Noise test standard and uncertainty

ISO 22868; 3 dB(A)

Both models share one catalog specification column. Reduction ratios and noise symbols are transcribed as printed; confirm the model-specific configuration with Shunyang.
